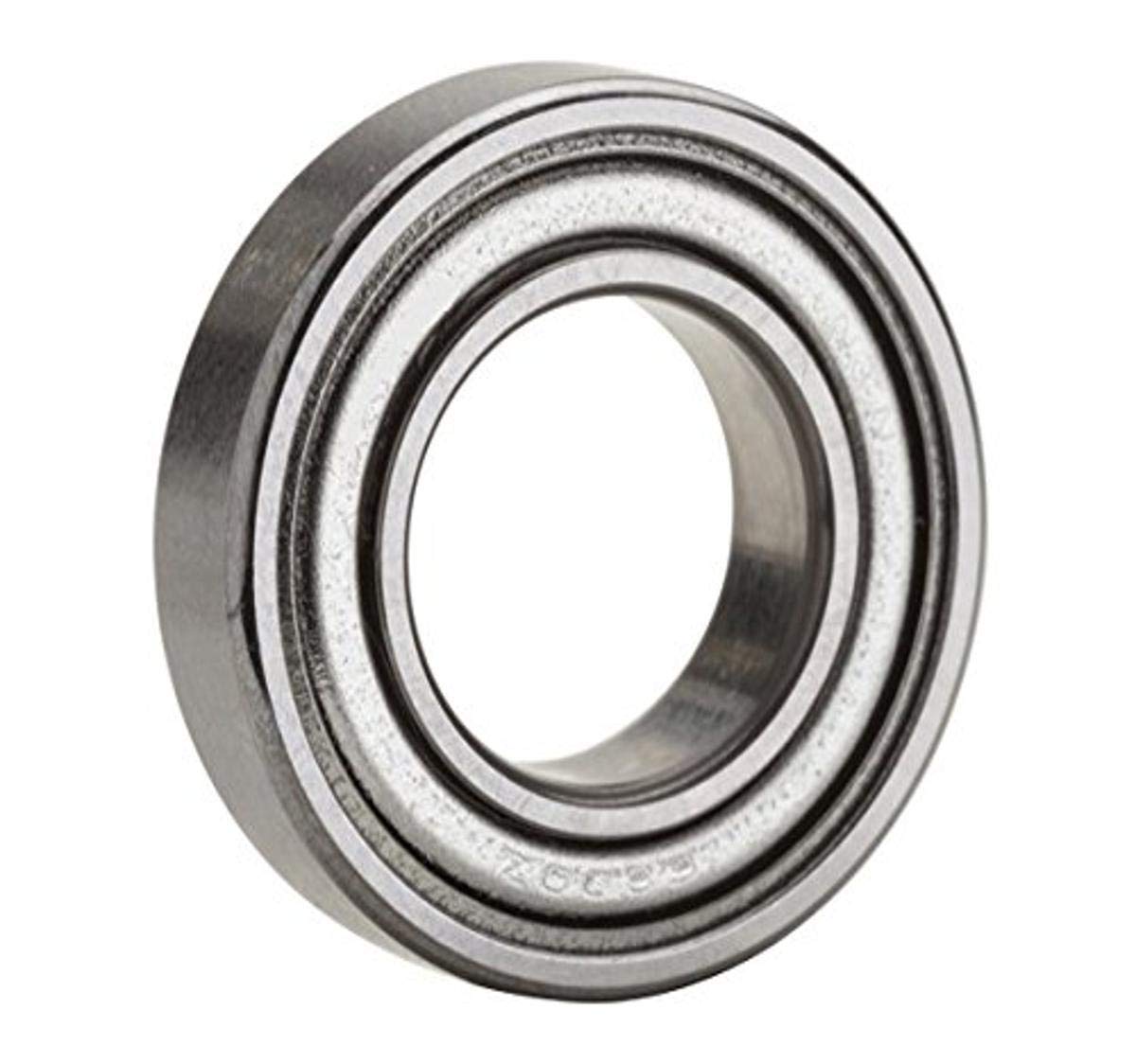

NTN 63314ZZC3/EM Deep Groove Ball Bearing - Single Row Radial Bearing for Electric Motors, C3 Clearance, Steel Cage, 70mm ID x 150mm OD x 63.5mm Width, Double Shielded - Ideal for Industrial Machinery, Pumps, and Power Tools

Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring. This close clearance labyrinth seal retains the lubricant and prevents the entrance of foreign matter. Sealed bearings incorporate steel reinforced rubber seals securely fastened to a groove on the outer ring. Contact with the inner ring is by sealing lip (Contact Suffix LLU). Or, non-contact with the inner ring is by labyrinth seal (Non-contact Suffix LLB) to provide positive sealing at all times.NTN is one of the three largest bearing companies in the world with more than ninety years of manufacturing expertise in ball bearings.

Deep groove geometry for high speeds

Single row for supporting radial loads

Steel cage evenly spaces balls for reduced friction, vibration and noise

Shields on both sides to keep lubricant in and contaminants out

C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
